Hina ESS PowerGem 5kWh Lithium Battery

Original price was: R28,963.90.Current price is: R24,618.51. incl Vat

15% Off

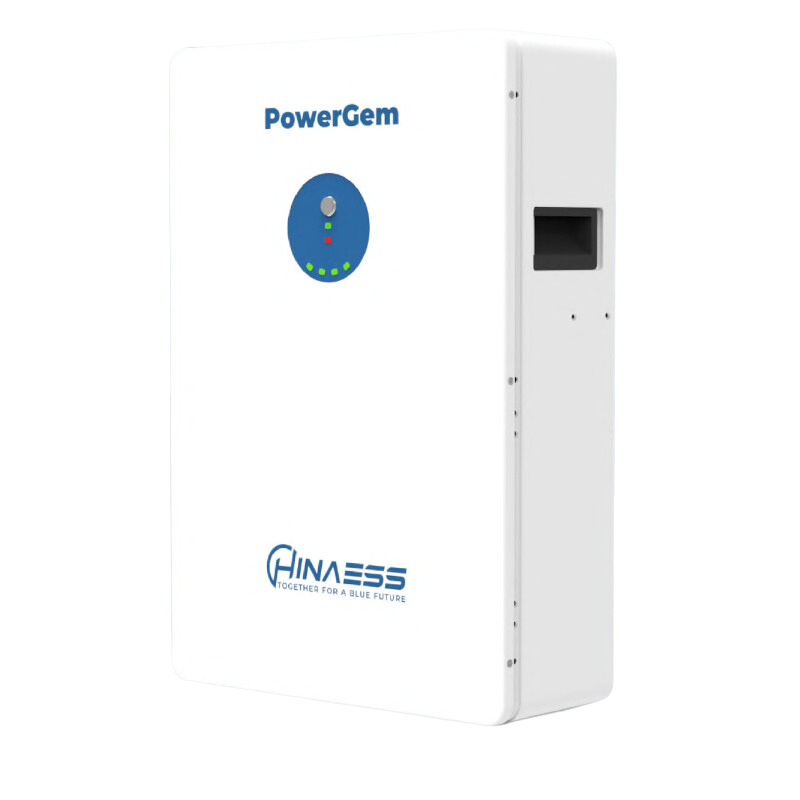

Hina ESS PowerGem 5kWh Lithium Battery

HinaESS provides an outstanding range of lithium battery solutions designed for both residential and commercial applications. It is a high-quality energy storage system that guarantees exceptional performance and durability. Using LFP technology, HinaESS is engineered to provide a remarkable cycle life that last up to 6,000 cycles.

Categories:

Description

Hina ESS PowerGem 5.12kWh Lithium Ion Battery

Introduction

Our batteries are built using the safest LFP materials and manufacturing techniques, ensuring that they are highly durable and long-lasting. With a range of sizes and capacities, our solutions are designed to meet the diverse needs from global customers.

Why HinaESS might be the right choice for you

  • Ultra-safe LFP Materials
  • 1C Working Capacity
  • Remote Monitoring & Update
  • High Performance and Long-lasting
  • Up to 32 units parallelable without extra device needed
  • Active charge balance to ensure strong performance
  • Auto-addressing, no DIP struggles for master/slave battery
  • Stronger second level protection to prevent battery from over discharge

With remote upgrade capabilities, the battery remains up-to-date with the latest firmware for optimal performance. Customers can remotely monitor their battery’s performance from anywhere in the world, thanks to its remote monitoring capabilities.

The Auto-addressing feature simplifies the complicated DIP settings, eliminating the need to set DIP for master and slave again. The smart BMS is equipped with an intelligent monitoring and management system that ensures maximum energy efficiency and reduces the risk of damage or failure. The second level protection provides a stronger shield to avoid over-discharge of the battery.

Specifications

Hina ESS PowerGem 5kWh Lithium Battery

Model PowerGem
Cell Type LFP
Rated Power 5.12kWh
Rated Capacity 100Ah
Rated Voltage 51.2V
Charge Voltage 56.5V
Max Charge/Discharge Current 100A
Discharge Peak Current 105A / 15s, 120A / 0.5s
Parallel Up to 32 units parallelable w/o extra device needed, slave battery

drops offline or come back alive does not affect system running

IP Level IP20
Dimension 640*428*166mm
Weight 58Kg
Communication CAN/RS485
Compatible Inverter Victron, Luxpower, Deye, Voltronic, SMA

Goodwe, Growatt, Sofar, Solark, SRNE, Must

Humidity 5%~85% RH (No condensation)
Work Temperature -20 ℃ ~ +55 ℃
Storage Temperature -10 ℃ ~ +35 ℃
Remote Maintenance Flexible remote upgrade,

Original firmware backup to prevent upgrade failure

Warranty * 10 year, 6000 cycles
Certification CE UN38.3 IEC62619
Protection Over charge/discharge/current/voltage/temperature protection

Short circuit protection, Reverse connection protection

Charge balance, Low SOC protection

Features

Hina ESS PowerGem 5kWh Lithium Battery

    • 10 year warranty
    • Ultra safe LFP material
    • Elegant enclosure design
    • Floor-standing / wall-mounting
    • Quick installation
    • Remote monitoring
    • Flexible remote upgrade
    • Auto-addressing for master/slave set up
    • Parallel up to 32 modules
    • Wide range inverter compatibility
    • 1C rate continuous charge/discharge
    • Multi protection to avoid over discharge
    • Smart BMS management for longer lifespan
    • Active balancing charging, low self consumption

Hina ESS PowerGem 5kWh Lithium Battery

ChillNet Pty Ltd - Hina ESS - R21,407.40 - HinaESS Banner

MORE ABOUT HINA-ESS

HinaESS, The Most Advanced Battery Solution Provider

HinaESS is a cutting-edge battery technology company that is leading the way in energy storage solutions. Our advanced batteries are designed to provide the highest levels of performance, reliability, and efficiency, making them ideal for a wide range of applications.

Our batteries are built using the safest LFP materials and manufacturing techniques, ensuring that they are highly durable and long-lasting. With a range of sizes and capacities, our solutions are designed to meet the diverse needs from global customers.

View more products



Additional information

Weight 58 kg
Dimensions 64 × 42.8 × 16.6 cm
Brand name

Battery Type

Max Charging Current

Nominal Battery Voltage

Ingress Protection Degree

Colour

Nominal Battery Energy

Parallel Capacity

Nominal Capacity

Technical Specification

HinaESS_Chillnet_ PowerGem.pdf by ChillNet
