Etek AC 2P Mini Circuit Breaker 16-63A

EKM1-63S Circuit Breaker has the characteristics of advanced structure, reliable performance, high breaking capacity and beautiful appearance. It is mainly used for AC 50Hz or 60Hz, rated voltage 400V or below and rated working current 63A or below. It is used for overload and short-circuit protection of lighting, distribution lines, equipment in office buildings, residential buildings and etc. It can also be used for infrequent on-off operations and conversion of lines.

Technical Data

Electrical Features
Rated Current In	1, 2, 3, 4, 5, 6, 8, 10, 13, 16, 20, 25, 32, 40, 50, 63A
Poles	1P, 2P, 3P, 4P
Rated voltage Ue	240/415V
Insulation voltage Ui	500V
Rated frequency	50/60Hz
Rated breaking capacity	1-40A，6000A/50-63A，4500A
Energy limiting class	3
Rated impulse withstands voltage (1.5/50) Uimp	4,000V
Dielectric test voltage at ind. Freq. for 1 min	2kV
Pollution degree	2
Thermo-magnetic release characteristic	B, C, D

Mechanical Features
Electrical life	4,000 Cycles
Mechanical life	10,000 Cycles
Contact position indicator	Yes
Protection degree	IP20
Reference temperature for setting of thermal elements	30℃
Ambient temperature (with daily average≤35℃)	-5℃~+40℃
Storage temperature	-25℃~+70℃

Installation
Terminal connection type	Cable/Pin-type busbar
Terminal size top/bottom for cable	25mm2   18-3AWG
Terminal size top/bottom for busbar	25mm2   18-3AWG
Tightening torque	2.5Nm 22In-Ibs
Mounting	On DIN rail EN 60715 (35mm) by means of a fast clip device
Connection	Power supply in both directions

Dimensions

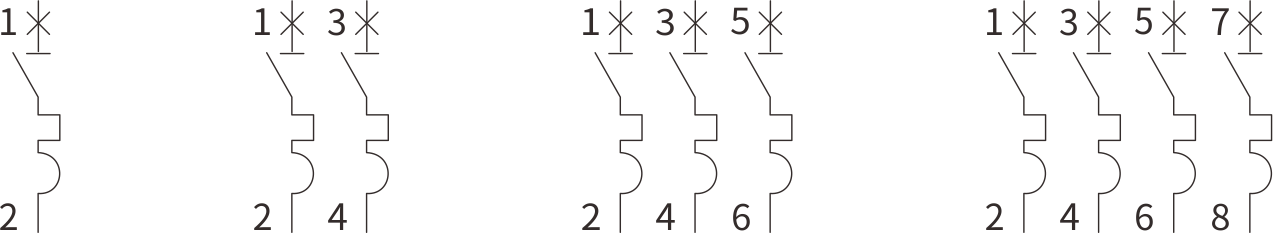

Circuit Diagram

Installation Size

Differences between isolator and miniature circuit breaker?

Isolators are used in power systems while MCB is circuit breaker. Isolators are manually operated devices while circuit breakers are operated automatically. MCB are onload devices while isolators are offload devices. Isolator cuts out a portion of a substation when a fault occurs. The other devices operate without any interruption. The Circuit breaker is a device known as an Automatic circuit breaker (ACB) or Miniature circuit breaker (MCB), which trips the entire system if any fault occurs and thus the whole system is affected.

In low-voltage power distribution systems, isolator and circuit breakers are commonly used electrical devices. Although their purpose is very similar, in practice they are distinctly different.

Definition

Isolator

• It is a switching / isolation device, intended to disconnect an equipment or electrical Load from the supply.
• It is an offload device; it can be operated only when the current passing through the circuit is zero. It can be operated only during offload condition.
• The basic intention behind using an isolator is to ensure safety during maintenance. Before operating an isolator, it must be ensured that the current flowing through the circuit is zero or within safety limits.

MCB (Miniature Circuit Breaker)

• It is a protection device. The basic function of a circuit breaker is to protect the equipment.
• Circuit breakers detect such faults and interrupt the power flowing toward the equipment / circuit, and prevent further damage to the equipment. The higher the intensity of the fault, the faster will be the interruption of power.
• MCB are equipped with a built-in arc quenching system. This enables them to be used during on load and fault conditions.
• It works during on load as well as offload condition.

Standards

• Isolator: IEC60947-3
• MCB: IEC60947-2 or IEC60898-1

Number of poles

• Isolators have 1, 2, 3, 4 pole.
• MCBs have 1, 1+N, 2, 3, 3+N ,4 pole.

Operation method

Circuit breakers can operate automatically to disconnect the electrical circuit during unprecedented electrical surges, but they can also be operated manually. Isolator, however, can only be operated manually.

Short circuit withstanding capacity

Isolators have high short circuit withstanding capacity compared to MCBs.

Location of the circuit

• The isolator is generally used upstream of the circuit breaker as the main switch to isolate the circuit in a house.
• Isolator is designed to provide switching under load (even inductive) in household, commercial and industrial applications.
• Its main function is to allow maintenance of the electric system in safe conditions. It also grants complete insulation of the downstream circuits.
• MCB is generally used in circuits downstream of isolator to provide short-circuit and overload protection for electrical installations.
• In the event of a fault, it automatically shuts down the circuit to prevent damage to wires and avoid fire risks.

Conclusion

Although circuit breakers and isolating switches are common electrical devices in power distribution circuits, the application scope and functions of circuit breakers far exceed isolating switches, but in low-voltage power distribution systems, we still need to use them in a reasonable combination according to actual application scenarios. This can not only reduce the installation cost of the power distribution system but also provide safety protection.
