Dyness Power Box Pro Lithium Ion 10.24Kwh 51.2V

Original price was: R66,399.85.Current price is: R52,149.51. incl Vat

21% Off

Dyness Power Box Pro Lithium Ion 10.24Kwh 51.2V

LiFePO4 chemistry battery with safety performance and longer cycle life, which offers
you various capacities to meet more of your requirements.

APP Monitoring  •  Various Installation  •  IP65 Protection  •  Flexible Expansion

Categories:

Description

Dyness Power Box Pro Lithium Ion 10.24Kwh 51.2V

  • Powerbox Pro Lithium Iron Phosphate Battery is external battery module which can store the electricity for home use.
  • When you apply the grid or photovoltaic system as your powers supply, the product can collect electricity to charges the battery.
  • When grid or photovoltaic system is power off , the product can supply electricity itself for your home loads.

ChillNet Pty Ltd - Dyness - R45,347.40 - Dyness 10.24Kwh Powerbox Pro 1

The Powerbox Pro is a type of deep cycle and high capacity lithium battery, support wall-mounted and landed two use modes, the energy can get up to 10kWh for single unit with efficient performance, meet the household electricity demand.

Specification

Dyness Power Box Pro Lithium Ion 10.24Kwh 51.2V

Dyness Power Box Pro Lithium Ion 10.24Kwh 51.2V

A Deeper Look

Dyness Power Box Pro Lithium Ion 10.24Kwh 51.2V

  • Powerbox Pro series is equipped with lithium iron phosphate battery for family use .
  • We base on customer needs and market requirement to develop cutting-edge battery storage technology and offer this high quality product to supply stable electricity for all kind of user’s devices.
  • The product have long life span and can be applied in high temperature environment and take less space for installation. Powerbox Pro series carries self-developed battery management system.
  • When you apply the grid or photovoltaic system as your powers supply, the product can collect electricity to charges the battery.
  • When grid or photovoltaic system is power off , the product cansupply electricity itself for your home loads. Products also can be paralleled to build a multi-module system with more capacity to satisfy the longtime energy storage demand.

Dyness Power Box Pro Lithium Ion 10.24Kwh 51.2V

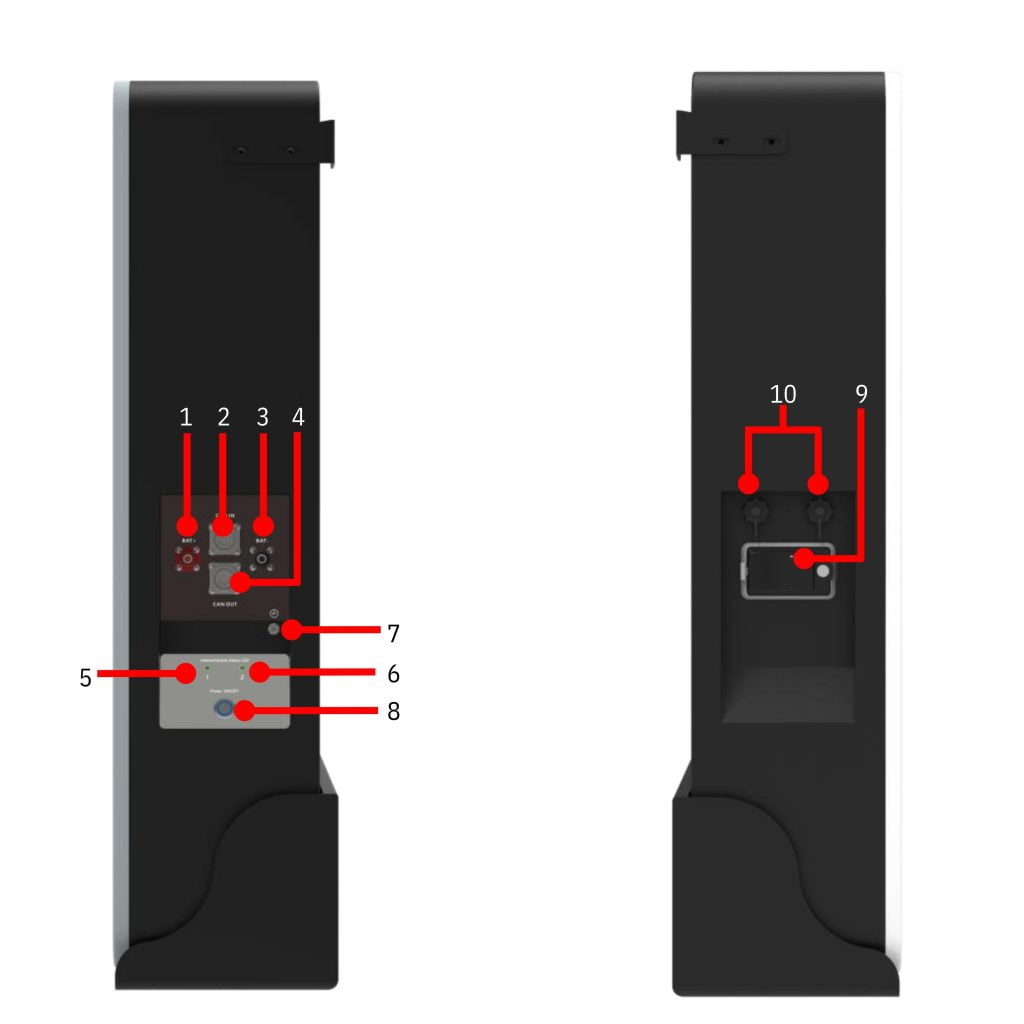

Interface Definitions

Dyness Power Box Pro Lithium Ion 10.24Kwh 51.2V

Dyness Power Box Pro Lithium Ion 10.24Kwh 51.2V

Item Name Definition
1 Positive Socket The battery DC output positive pole, which is connected to the
positive pole of the inverter through the cable
2 COM IN When the system is used independently:
The CAN/RS485 socket is connected to the inverter CAN/RS485
interface through the communication cable. When the system is used in parallel:
This CAN/RS485 communication socket is connected to the COM OUT interface of the previous Powerbox Pro through
communication cable
3 Negative Socket The battery DC output negative pole, which is connected to the
negative pole of the inverter through the cable
4 COM OUT When the system is used independently: This CAN/RS485 socket is a reservation interface.When the system is used in parallel:
This CAN/RS485 communication socket is connected to the COMIN interface of the next Powerbox Pro through communication
cable. (Factory default CAN communication mode)
5 LED 1 Module 1 status indicator light
6 LED2 Module 2 status indicator light
7 Ground connection
point
Shell ground connection
8 Reset switch Press the switch and the battery system turn on. When the battery is in the non-use state such as storage, transportation etc., it needs to be turn off by pressing the Reset switch button, and the battery system will automatically sleep after the device without external load and power for 72 hours
9 DC circuit breaker Circuit Protection
10 COM Communication cascade port, support RS232

Dyness Power Box Pro Lithium Ion 10.24Kwh 51.2V

Dyness BX51100 5.12kWh Lithium Battery

MORE ABOUT DYNESS

Dyness owns the most sophisticated team with top class R&D experts from the industry. We devote ourselves to responsible engineering of the safest, greenest possible future for you and your family.

Our Powerbox stores excess power produced from solar in daytime, it can be used at night to increase greater energy self sufficiency and security, or used at peak time to reduce household electric charges. Dyness brings our latest Battery Energy Storage System (BESS) Powerbox to Australia at affordable price and top class quality.

Dyness’s mission is to facilitate a healthier energy chain at reasonable cost,consumers and utilities could all get out of the conventional fuels that hurt our planet,where in stead,the clean energy takes charge.

Let’s start using the sunshine by schedule!

View more batteries in our shop.

Additional information

Weight 115 kg
Dimensions 55.5 × 21 × 102 cm
Brand name

Battery Type

Technical Specification

  1. DATASHEET
  2. USER MANUAL
  3. WARRANTY
  4. TEST REPORT
  5. MATERIAL SAFETY DATA SHEET

Installation

Dyness Power Box Pro Lithium Ion 10.24Kwh 51.2V

Parallel Installation

Dyness Power Box Pro Lithium Ion 10.24Kwh 51.2V

ChillNet Pty Ltd - Dyness - R45,347.40 - 1648042964457279

What's In The Box

Dyness Power Box Pro Lithium Ion 10.24Kwh 51.2V

Dyness Power Box Pro Lithium Ion 10.24Kwh 51.2V
