Deye 5Kw Single Phase Hybrid Inverter

R23,169.51 incl Vat

24% Off

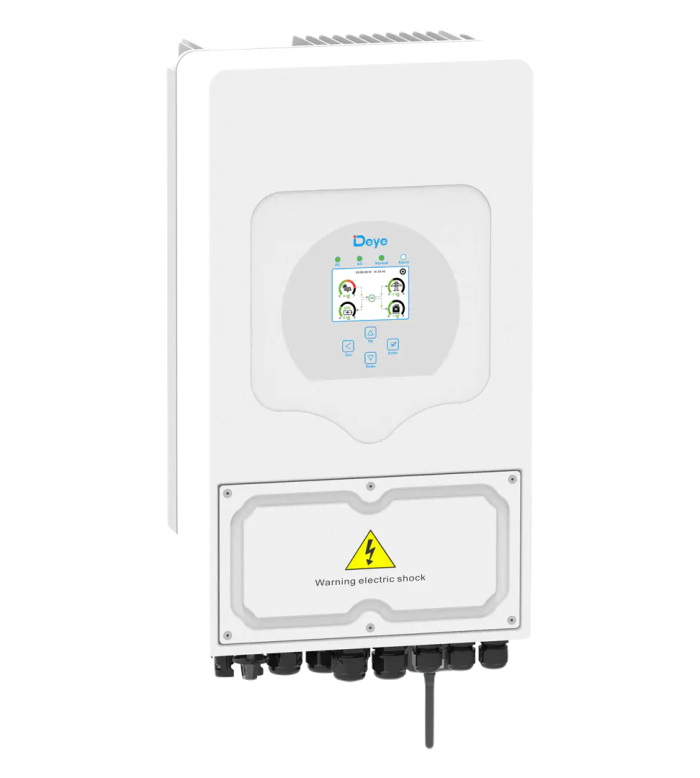

Deye 5Kw Single Phase Hybrid Inverter

*The Deye manufacturing facility also produces Sunsynk Inverters.

The Deye 5kW Single Phase Hybrid Inverter, is suitable for residential and light commercial use, maximizing self-consumption rate of solar energy and increasing your energy impendence.

Categories:

Description

Deye 5Kw Single Phase Hybrid Inverter

Deye 5Kw Single Phase Hybrid Inverter, is suitable for residential and light commercial use, maximizing self-consumption rate of solar energy and increasing your energy impendence.   During the day, the PV system generates electricity which will be provided to the loads initially. Then, the excess energy will charge the battery via SUN 3.6/6K-SG. Finally, the stored energy can be released when the loads require it. The battery can also be charged by the diesel generator to ensure uninterrupted supply in the event of grid blackout.

It equipped with RS485/CAN port for battery communication

Deye 5Kw Single Phase Hybrid Inverter

Smart Monitoring Platform

Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.

Key Features

Deye 5Kw Single Phase Hybrid Inverter

  • Colorful touch LCD, IP65 protection degree
  • 6 time periods for battery charging/discharging
  • Max. charging/discharging current of 190A
  • Max.16pcs parallel
  • DC couple and AC couple to retrofit existing solar system
  • Support storing energy from diesel generator
  • 48V low voltage battery, safe and reliable
  • Unique Smart Load application and Grid peak shaving function
  • 4ms fast transfer from on-grid to off-grid mode, ensuing the traditional fixed frequency air conditioner works well

Specification

Deye 5Kw Single Phase Hybrid Inverter

  • Package Includes WIFI Dongle & Current Transformer
  • Max Efficiency of 97.6%
  • 2 MPPT (Maximum Power Point Tracker)
  • RS485 / CAN Communication Ports
  • Load or Home power first with Zero Export to the Grid
  • IP65 Ingress Protection
  • High Power Factor
  • AC Coupled
  • Supports Generator Connection
  • Six stages time of use setting
  • Support multiple parallels
  • Touchscreen Interface
  • Update existing solar on-grid system to a hybrid system
  • Use Gen input as crucial load output
  • Compatible with PYLONTECH, LG, BYD etc, brand battery
  • Output: 230V AC Single Phase @ 50Hz
  • PV Rapid Shutdown Control, PV Arc Fault detection, input lightning protection, multiple inverters in parallel
  • Multiple working modes: Grid-Tied, Hybrid or Off-Grid
  • Simultaneously manages power to / from Panels, Batteries, Grid, Load, and Generator
  • UPS time: less than 5ms
  • Charge and Discharge up to 190A, 7.6/8Kw (120A 5Kw, 135A 6Kw)
  • Wall Mounted

Model SUN-5K-SG01LP1-EU
BATTERY INPUT DATA
Battery Type Lead Acid or Lithium Ion
Battery Voltage Range (V) 40-60V
Max.Charging Current (A) 120A
Max.Discharging Current (A) 120A
Charging Curve 3 Stages / Equalization
External Temperature Sensor Optional
Charging Strategy for Li-Ion Battery Self-adaption to BMS
PV STRING INPUT DATA
Max.DC Input Power (W) 6500W
PV Input Voltage (V) 370V (100-500V)
MPPT Range (V) 125-425V
Full Load DC Voltage Range 240-425V
Start-up Voltage (V) 150V
PV Input Current (A) 13A + 13A
No.of MPPT Trackers 2
No.of Strings Per MPPT Tracker 1+1
AC OUTPUT DATA
Rated AC Output and UPS Power (W) 5000W
Max.AC Output Power (W) 5500W
Peak Power (Off-Grid) 2 times of rated power, 10S
AC Output Rated Current (A) 21.7A
Max.AC Current (A) 25A
Max.Continious AC Passthrough (A) 35A
Power Factor 0.8 leading to 0.8 lagging
Output Frequency and Voltage 50/60Hz ; 220/230/240 VAC (Single Phase)
Grid Type Single Phase
Current Harmonic Distortion THD<3% (Linear Load <1.5%)
EFFICIENCY
Max.Efficiency 97.60%
Euro Efficiency 96.50%
MPPT Efficiency 99.90%
PROTECTION
PV Input Lightning Protection Integrated
Anti-Islanding Protection Integrated
PV String Input Reverse Polarity Protection Integrated
Insulation Resistor Protection Integrated
Residual Current Monitoring Unit Integrated
Output Over Current Protection Integrated
Output Shorted Protection Integrated
Output Over Voltage Protection Integrated
Surge Protection DC Type 2/ AC Type 2
GENERAL DATA
Operating Temperature Range (°C) -25-60°C, >45°C Derating
Cooling Smart Cooling
Noise (dB) <30dB
Communication With BMS RS485 ;  CAN
Protection Degree IP65
Warranty 5 Years

System Diagram

Deye 5Kw Single Phase Hybrid Inverter

Typical Application

  • Maximizing solar self-consumption. During the day, the PV system generates electricity which will be provided to
    the loads initially. Then, the excess energy will charge the battery via Deye hybrid inverter. Finally, the stored energy
    can be released when the loads require it.
  • Providing backup for critical loads: there’re independent critical load output port and grid port. It allows critical
    loads such as refrigerators, routers, lamps, computers and other critical appliances can be powered when the grid
    fails. The system can automatically switch to backup mode within 4 milliseconds. Since the automatically time is
    very short, the critical loads can work smoothly even for Non-inverter type air conditioner.
  • Reducing your electricity bills: Thanks to there’re 6 time periods for battery charge and discharge. Deye hybrid
    inverter allows user to charge the battery at the off-peak time and discharge the battery during peak time. Meanwhile,
    it supports grid peak shaving function which can limit the Max. power from grid.

DEYE System Diagram

Working Modes

1. Selling (Only in Cape Town, Consult your local municipality)

Deye 5Kw Single Phase Hybrid Inverter

  • This Mode allows hybrid inverter to sell back any excess power produced by the solar panels to
    the grid.
  • If the “time of use” is active, the battery energy also can be sold into grid.
  • The PV energy will be used to power the load and charge the battery and then excess energy will flow to grid.
  • Power source priority for the load is as follows: Solar Panels. Grid. Battery (until programmable % discharge is reached).

2. Zero Export To Load

Deye 5Kw Single Phase Hybrid Inverter

Hybrid inverter will only provide power to the backup load connected. The hybrid inverter will neither provide
power to the home load nor sell power to grid. The built-in CT will detect power flowing back to the grid and
will reduce the power of the inverter only to supply the local load and charge the battery.

ChillNet Pty Ltd - Deye - R20,147.40 - DEYE Zero Export To Load3. Zero Export To CT

Deye 5Kw Single Phase Hybrid Inverter

Hybrid inverter will not only provide power to the backup load connected but also give
power to the home load connected. If PV power and battery power is insufficient, it will take grid energy
as supplement. The hybrid inverter will not sell power to grid. In this mode, a CT is needed. The external CT will
detect power flowing back to the grid and will reduce the power of the inverter only to supply the local load,
charge battery and home load.

ChillNet Pty Ltd - Deye - R20,147.40 - DEYE Zero Export To CT


DEYE

MORE ABOUT DEYE TECHNOLOGY GROUP

Ningbo Deye Inverter Technology Co., Ltd. founded in 2007 with registered capital 300 million RMB, is one of the China’s high-tech enterprises and a subsidiary of Deye Group. With a plant area over 15,000㎡ and complete production and testing equipment, Deye has become a major player in the global solar inverter market.

Ningbo Deye Inverter Technology Co., Ltd. is dedicated to providing complete photovoltaic power system solutions, including residential and commercial power plants solutions. Also, Deye offers the right device for each application: for all module types, for grid-connection and stand-alone grids as well hybrid inverter system, for small house systems and commercial systems in the Megawatt range. Among them, PV grid-connected inverter power range from 1.5-110kW, Hybrid inverter 3kW-50kW, and microinverter 300W-2000W.

As a technology-oriented company, Deye has always been committing to research and develop new cutting-edge technologies to provide efficiency and reliable products. For example, Deye adopts T-type three-level topology and enhanced SVPWM algorithm to further improve the conversion efficiency by 0.7% compared with common SPWM.

View more products

Additional information

Weight 20.5 kg
Dimensions 58 × 33 × 21.7 cm
Brand name

Battery Type

, ,

Ingress Protection Degree

Insulation

Max Charging Current

Max Discharge Current

MPPT Tracker

Max DC Input Current

Max. MPPT Voltage

Min. MPPT Voltage

MPPT Efficiency

MPPT Voltage Range

Nominal Battery Voltage

Nominal Output Frequency

Normal Output Voltage

,

Parallel Capacity

Rated Power

Surge Power

Wave Form

Technical Specification

  1. NRS 097-2-1 Certificate
  2. DATASHEET
  3. User Manual
