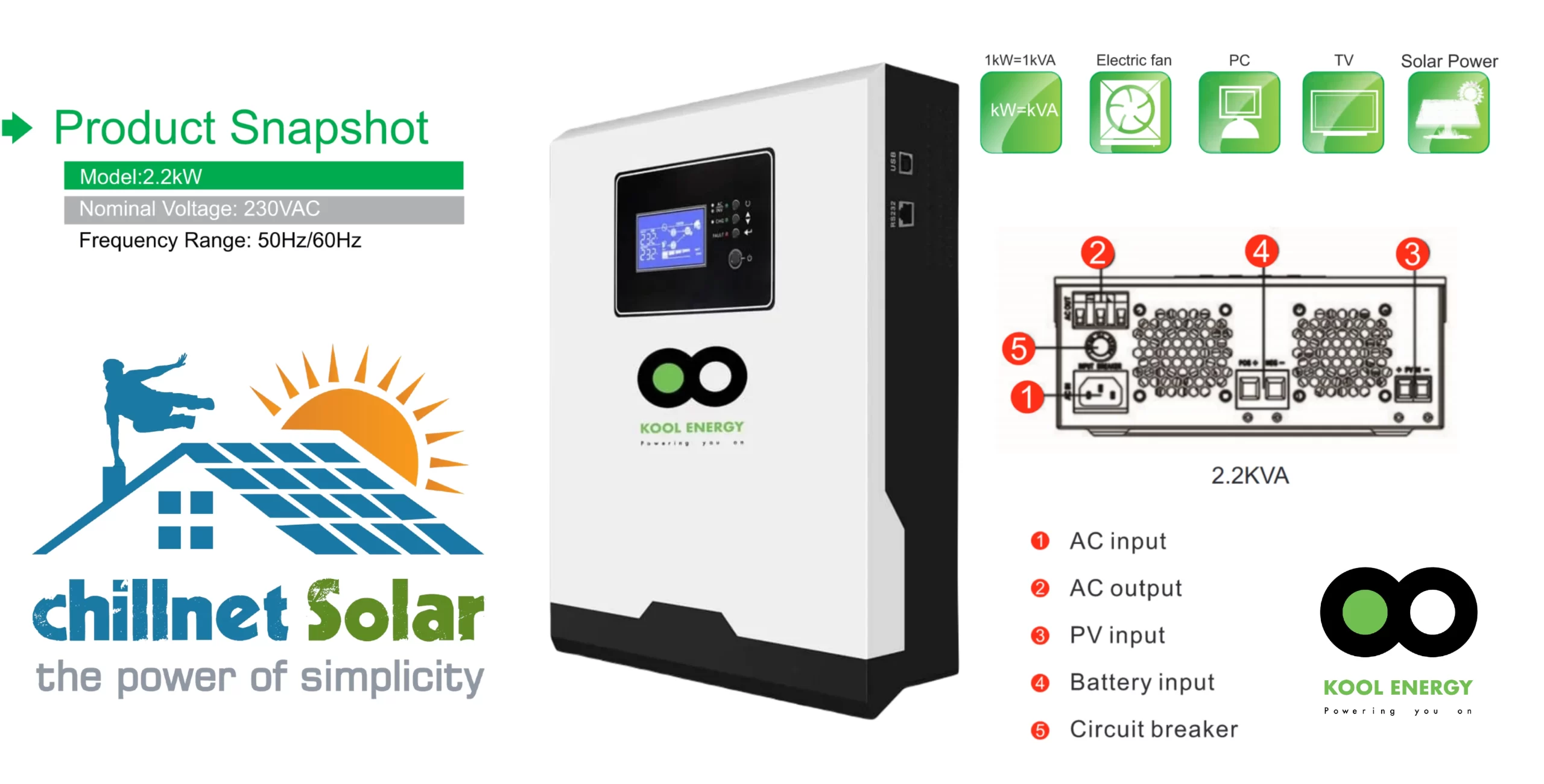

Kool Off-Grid Inverter 2200W Off Grid Inverter

The Kool Energy 2.2kw Off-Grid Inverter is easy to use. It provides quiet, clean power wherever you need it. Off the grid? We’ve got you covered. Introducing the Kool Energy 2.2kw off-grid solar inverter. It’s simple. You don’t have to hook up to the grid and you can still plug in your appliances.

Pure sine wave solar inverter

Kool Off-Grid Inverter 2200W

• Maximum PV Array Power: 1400W
• MPPT Range (Operating Voltage): 30VDC-80VDC
• Maximum Solar Charge Current: 50A
• Maximum AC Charge Current: 20A

Input

Kool Off-Grid Inverter 2200W

• Voltage: 230VAC
• Selectable Voltage Range: 170VAC-280VAC (Personal Computers)
• Selectable Voltage Range: 90VAC-280VAC (Home Appliances)
• Frequency Range: 50Hz/60Hz (Auto Sensing)

Output

Kool Off-Grid Inverter 2200W

• Rated Power: 2200W
• AC Voltage Regulation (Battery Mode): 230VAC ±5%
• Surge Power: 4000VA
• Efficiency: 90% to 93%
• Transfer Time: 10ms (Personal Computers) / 20ms (Home Appliances)
• Waveform: Pure Sine Wave

Solar Charger & AC Charger

Kool Off-Grid Inverter 2200W

• Maximum PV Array Power: 1400W
• MPPT Range (Operating Voltage): 30VDC-80VDC
• Maximum Solar Charge Current: 50A
• Maximum AC Charge Current: 20A

Environment Limit

Kool Off-Grid Inverter 2200W

• Humidity: 5% to 95% (Non Condensing)
• Operating Temperature Range: -10°C to 50°C
• Storage Temperature: -15°C to 60°C
• Communication: USB/RS232

Key Features

Kool Off-Grid Inverter 2200W

1. Pure sine wave solar inverter.
2. Output power factor 1.
3. Selectable high power charging current.
4. Wide DC input range.
5. Selectable input voltage range for home appliances and personal computers.
6. Configurable AC/Solar input priority via LCD setting.
7. Compatible to AC mains or generator power.
8. Auto restart while AC is recovering.
9. Overload and short circuit protection.
10. Smart battery charger design for optimized battery performance.
11. Cold start function.

MORE INFO ON MAXIMUM POWER POINT TRACKING

What Is A MPPT?

MPPT stands for Maximum Power Point Tracker. It is a circuit (typically a DC to DC converter) employed in the majority of modern photovoltaic inverters. Its function is to maximize the energy available from the connected solar module arrays at any time during its operation.

Why Is A MPPT Necessary?

A solar module is a limited energy DC supply and has internal impedances that vary throughout the course of the day, depending primarily on the level of solar irradiance impinging on the module face and the cell temperature.

An inverter without an MPPT circuit would result in sub-par or non-optimal operating conditions between any PV module (or string of modules) and the inverter. Unless the inverter can match the strings to extract maximum power the result is a lower efficiency operation for the connected strings. The MPPT circuit constantly monitors the array voltage and current. It attempts to drive the operating point of the inverter to the maximum power point of the array, resulting in the highest energy harvest.

MPPT And Monitoring

Single MPPT channel inverters can only provide monitoring data at the entire array level. Whether one, two or four strings, data collection will be based on the overall array input. With independent dual MPPT channels, the inverter can provide monitoring information at the MPPT channel level. As a result, there is a finer granularity in the monitoring data, such as site status, energy production and troubleshooting data.
