Etek DC 2P Surge Protection Device
R445.05 – R617.55 incl Vat
Etek DC 2P Surge Protection Device
PV SPD is DC surge protector specially designed for photovoltaic power supply systems.These units must be installed in parallel on the DC networks to be protected and provide common and different modes protection. Its installed location are recommended at both ends of the DC power supply line (solar panel side and inverter/converter side), especially if the line routing is external and long.
Description
Etek DC 2P Surge Protection Device
The function of lightning and surge protection systems is to protect the devices, functional isolations and overvoltage-sensitive consumer equipment of energy distribution systems against all lightning and overvoltage damages. whole building; the outdoor lightning protection system is generally not sufficient to eliminate such malfunctions. At most of types, the defected protection device can be made operative again by changing the damaged insert; these variants are also equipped with both optical operation signal and auxiliary status contact.
Technical Data
| General Data | 800V | 500V | 175V |
|---|---|---|---|
| Model | EKU4-20Z | EKU4-20Z | EKU4-20Z |
| Type | DC | DC | DC |
| Poles | 2-Pole | 2-Pole | 2-Pole |
| Maximum Continuous Operation Voltage (Ucpv) | 800VDC | 500VDC | 175VDC |
| Voltage Protection Level (Up) | 2.5KV | 2.2KV | 0.8KV |
| Nominal Discharge Current (In) | 10KA (8/20μs) | 10KA (8/20μs) | 10KA (8/20μs) |
| Maximum Discharge Current (Imax) | 20KA (8/20μs) | 20KA (8/20μs) | 20KA (8/20μs) |
| Reaction Time | <25ns | <25ns | <25ns |
| Mechanical Data | |||
| Test Level | T2 | T2 | T2 |
| Width / Pole | 18mm | 18mm | 18mm |
| Casing Material | PBT | PBT | PBT |
| Indication Window | Yes | Yes | Yes |
| Operating Temperature | -40°C to +80°C | -40°C to +80°C | -40°C to +80°C |
| Ingress Protection | IP20 | IP20 | IP20 |
| Mounting | DIN Rail 35mm (Fast Clip device) | DIN Rail 35mm (Fast Clip device) | DIN Rail 35mm (Fast Clip device) |
| Safety Rating | EN50539-11 | EN50539-11 | EN50539-11 |

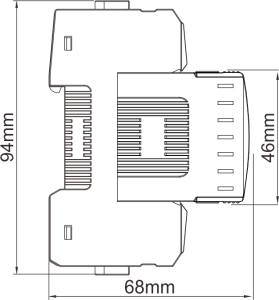

Dimensions
Basic Circuit Diagram
Installation Size
 |
 |
|---|
More Information
What does a Surge Protection Device do?
A surge protective device (SPD) is designed to protect electrical systems and equipment from surge events by limiting transient voltages and diverting surge currents. Surges can originate externally, most intensely by lightning, or internally by the switching of electrical loads.
Do I need a Surge Protection Device?
Additionally, any commercial, industrial, or public building that is supplied by overhead lines requires surge protection – so the majority of buildings will require surge protection. Residential properties will depend on use and occupancy levels.
ETEK
Zhejiang ETEK Electrical Technology Co.,Ltd. (abbreviation:ETEK Electric) is a professional manufacturing company dedicated to the research and development, production and sales of low-voltage electrical appliances. The company was established in 2011 and is located in Wenzhou City, Zhejiang Province. The company has an advanced production management system, production process and its products cover power safety products for household, commercial, industrial and similar facilities, such as Miniature circuit breakers (MCB), Residual current device (RCD), Isolating switches, Distribution boxes, Molded case circuit breakers (MCCB), Air circuit breakers (ACB), AC contactors, IoT smart circuit breakers, and Electric vehicle charging facilities (EV Charger), etc.
ETEK Electric is committed to solving customers’ pressures and challenges and creating value for customers. ETEK Electric With rich industry experience and a dynamic, professional and efficient senior team, we can provide customers with the best OEM/ODM services.
ETEK Electric always insists on providing our customers with safe and reliable electrical products. We hope our products can guarantee the power safety of users around the world.
